-- Description -- Weight: 550 kg. Loading weight: 650 kg. Volume: 0.57m. Opening width 1829 mm. Depth: 1598 mm. Height: 996 mm. Thickness of shovel teeth: 25 mm. Overall size of stone: 2in24in. Drive sprocket: 12A13. Driven sprocket: 12A39. Deceleration ratio: 3:01. Idler: 12A13. Transmission chain: 12A88 knots. Bearing: UCF210. Hydraulic drive motor: BM3Y315P1AIIY. Rated pressure: 20 MPA. Hydraulic flow: 6 GPM. Contact Myron Miller with any questions 574-536-6306

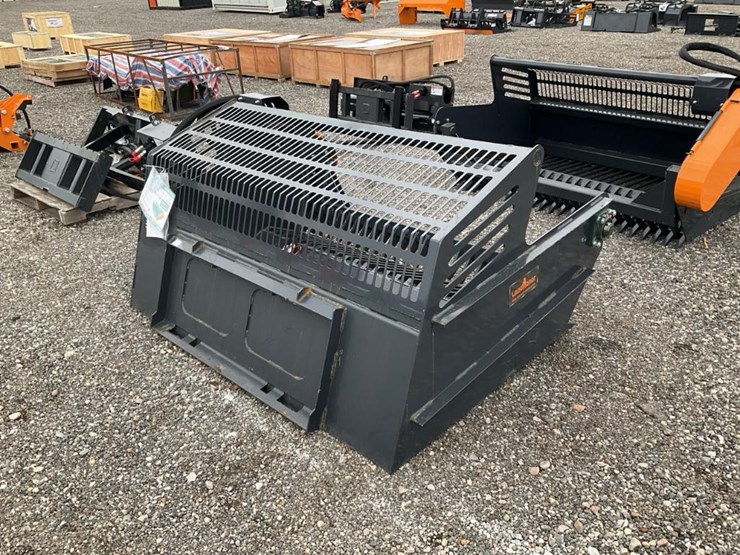

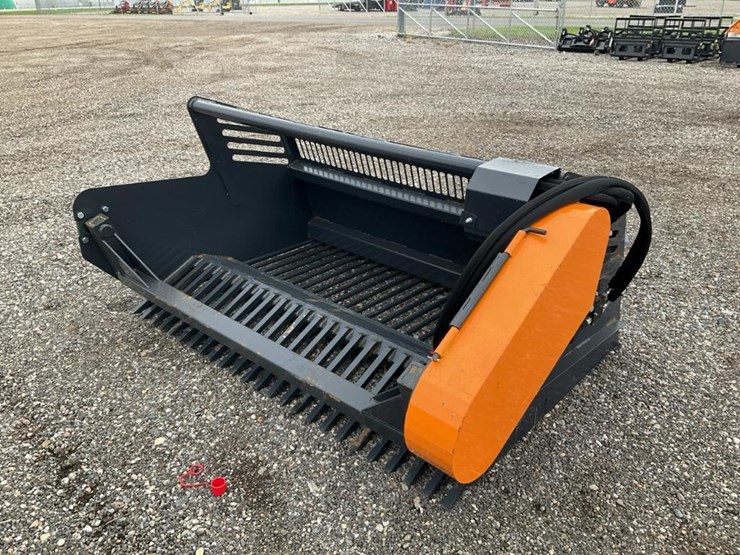

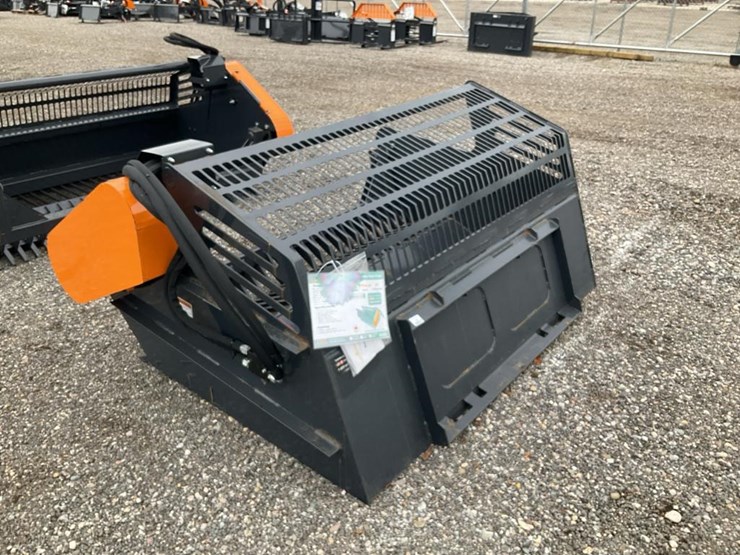

#1411 • New Skid Steer Rock Picker

Lot #1411

Item #

20899982

Working Pressure

20

Thumb

Hydraulic
