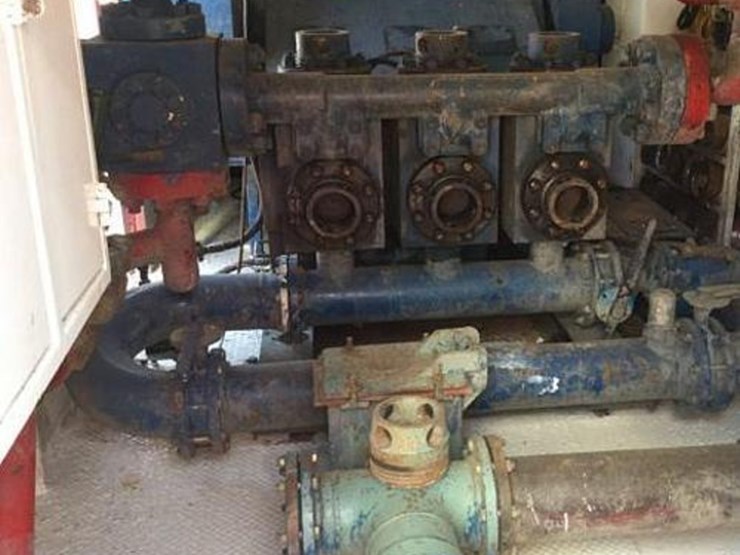

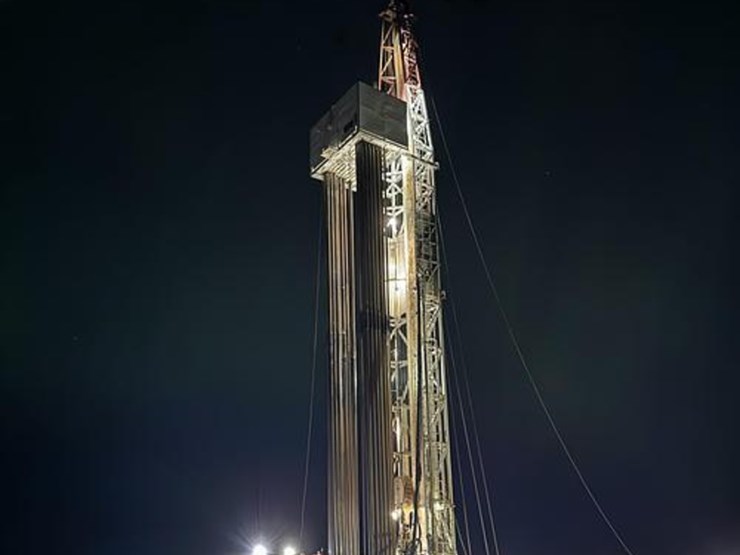

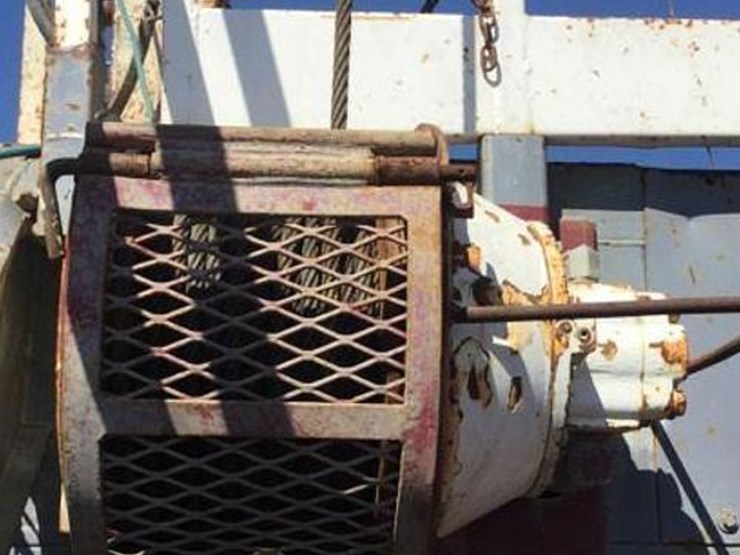

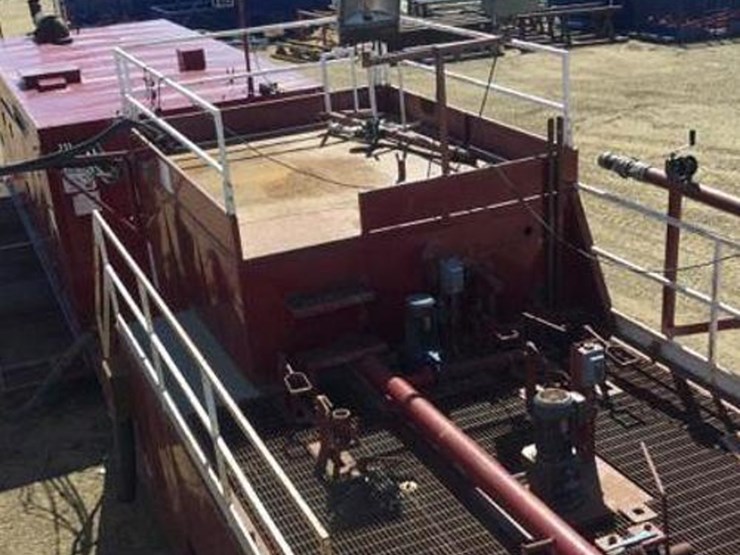

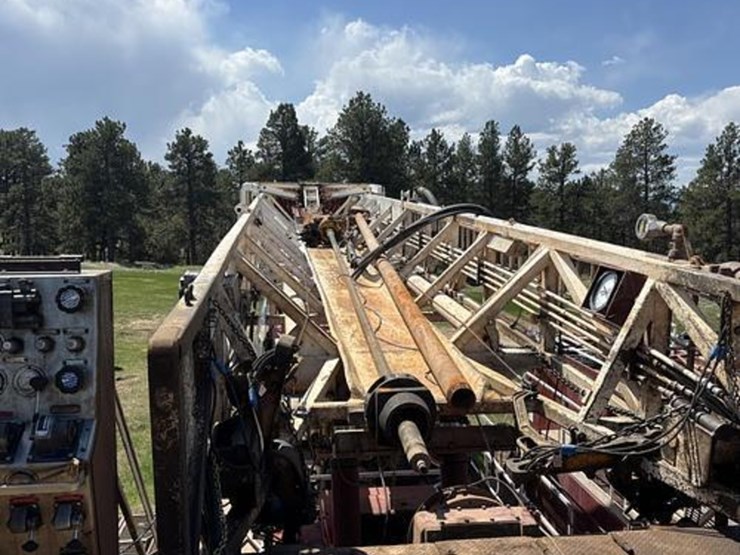

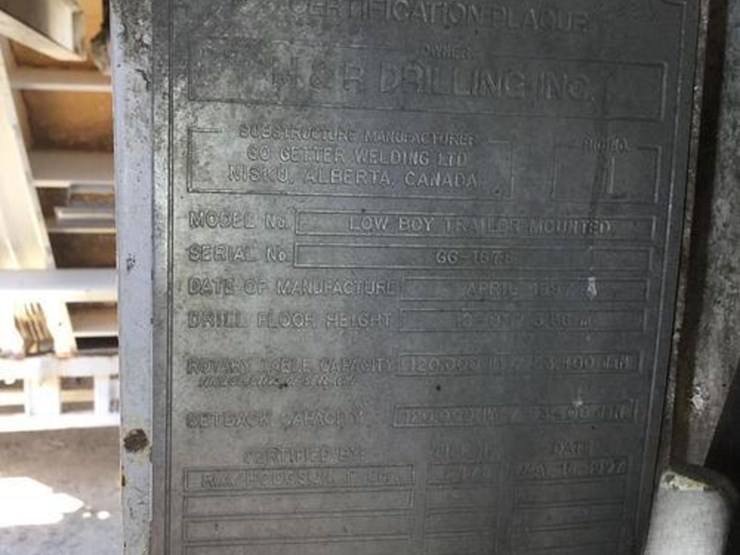

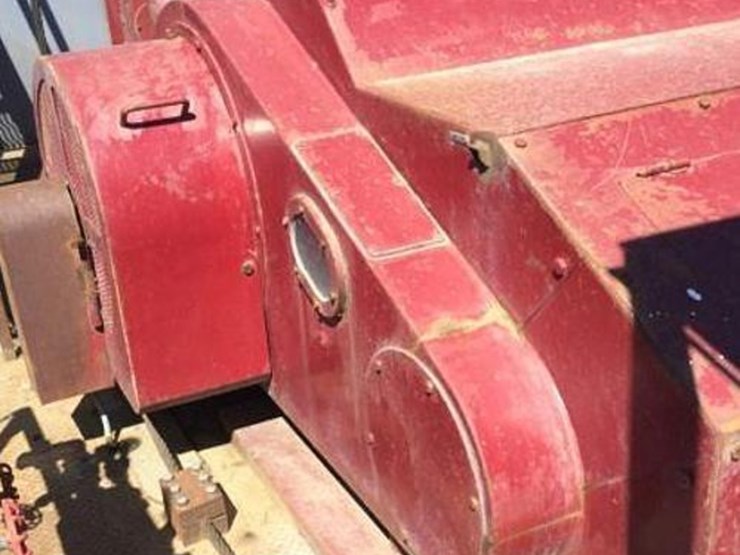

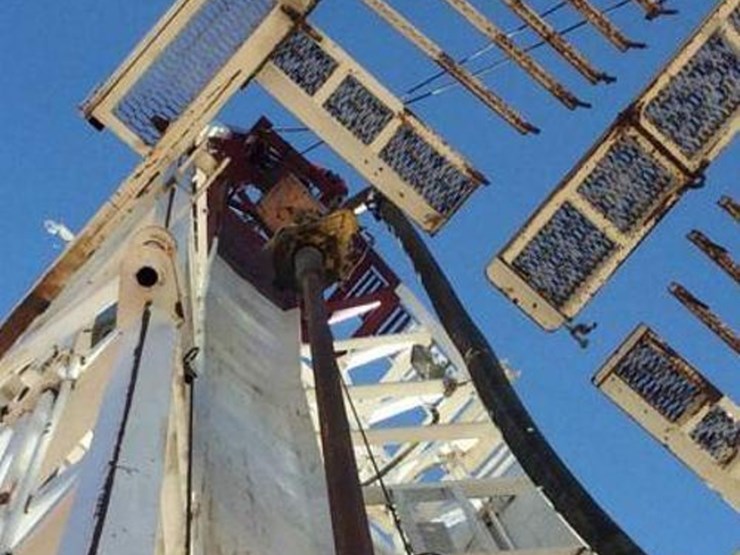

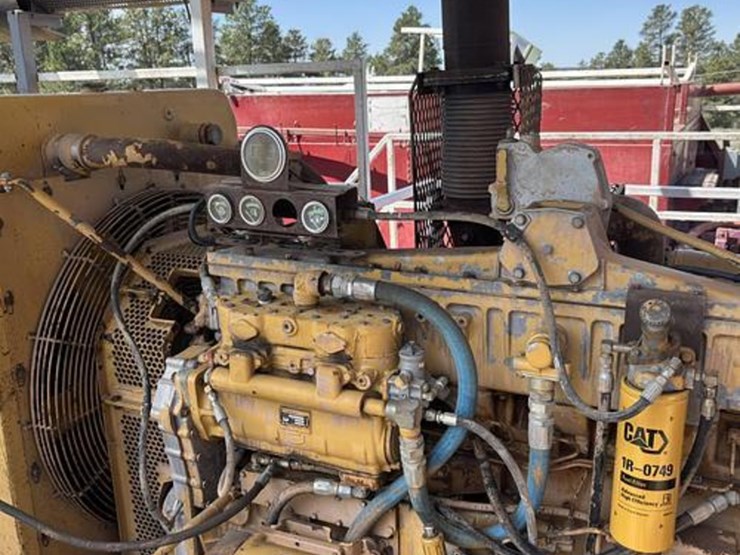

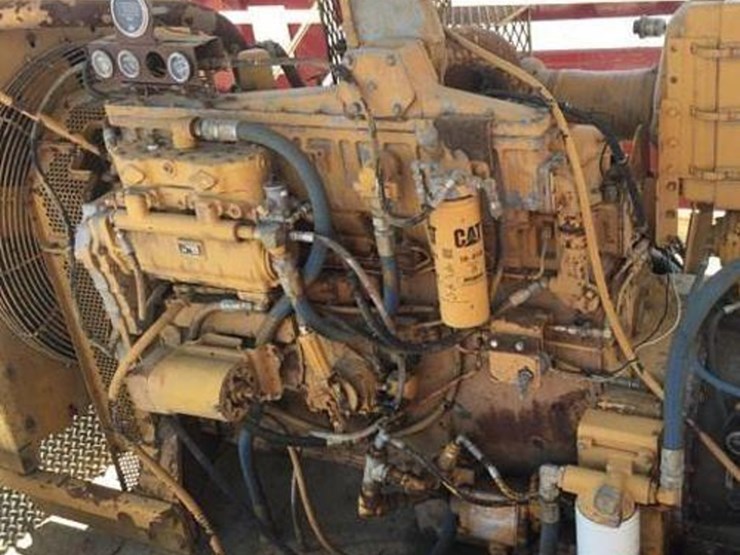

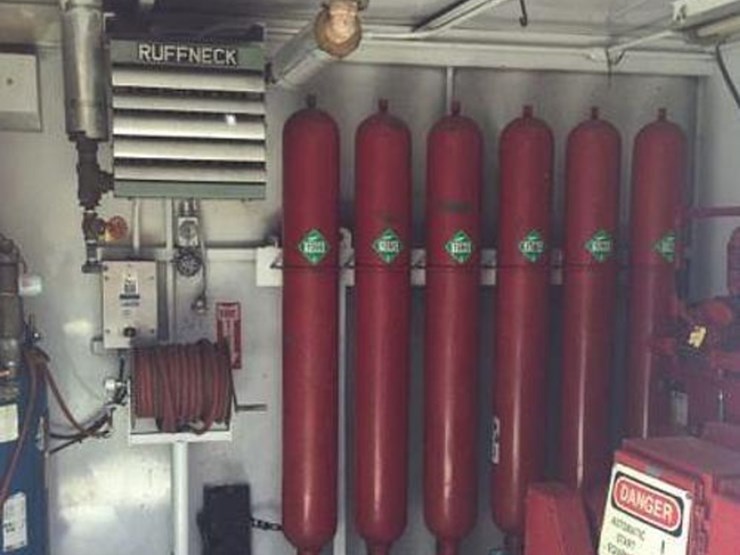

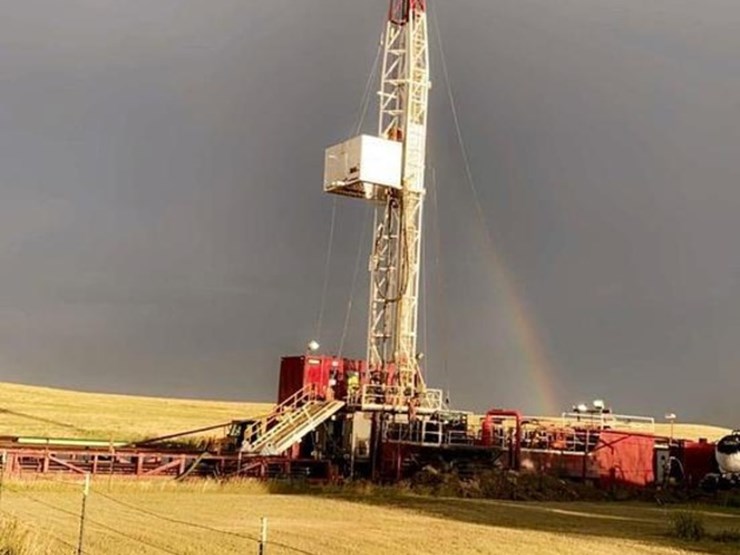

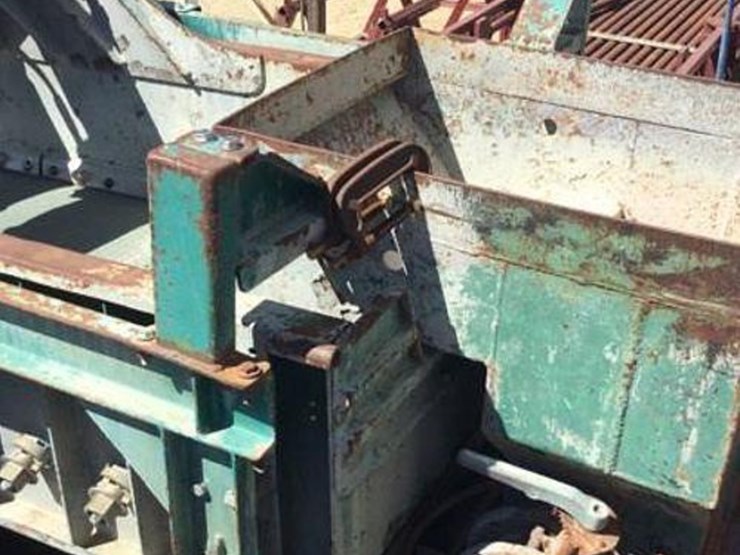

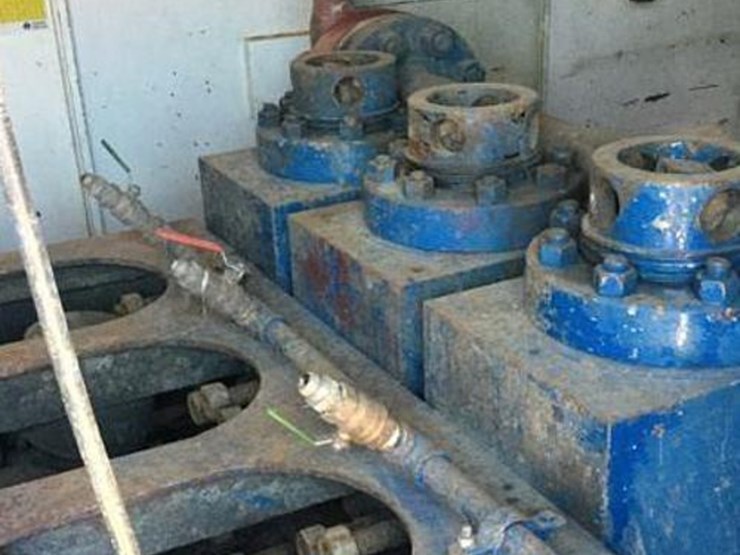

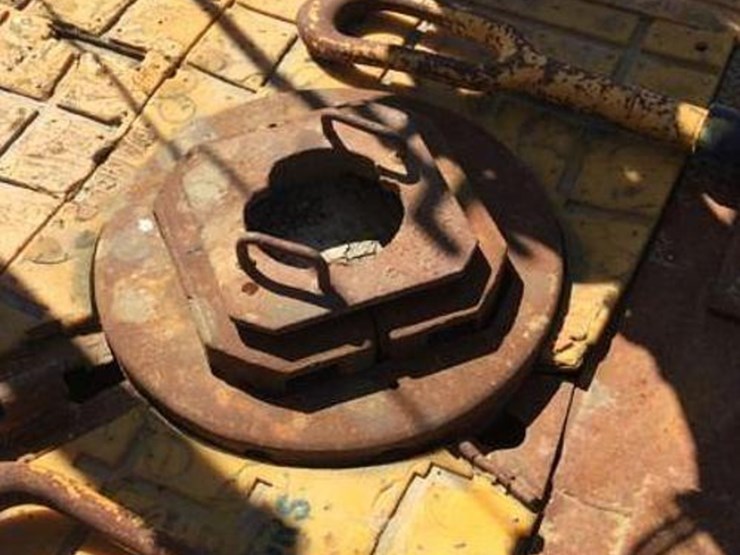

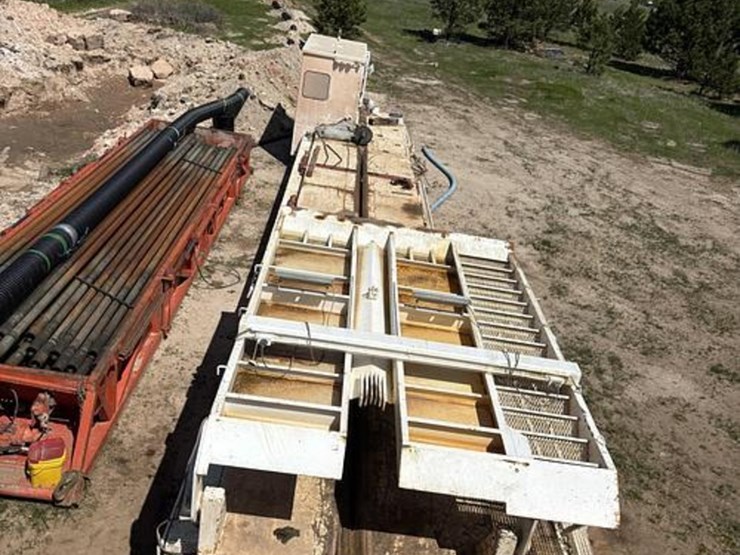

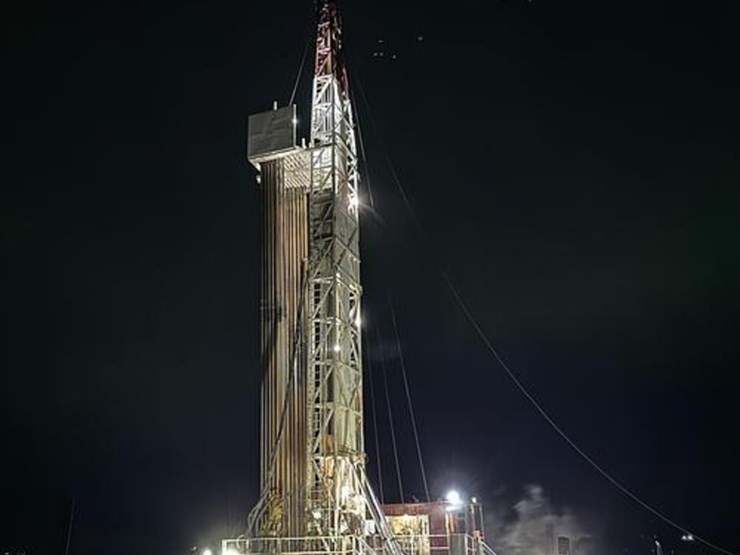

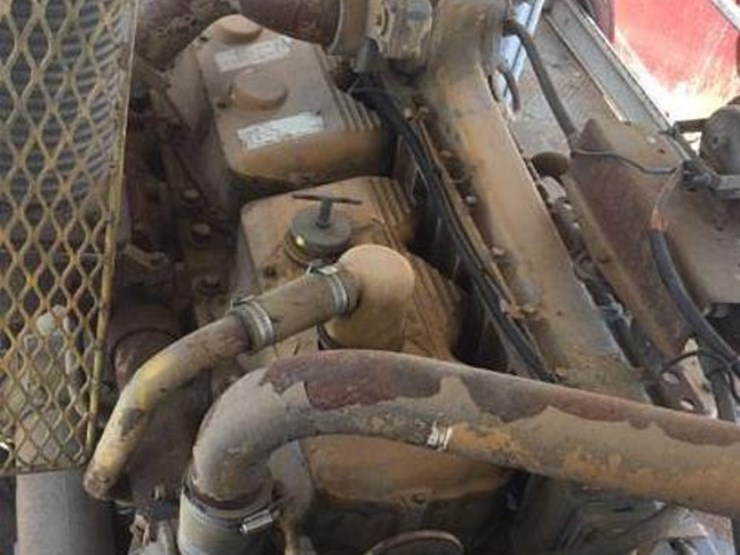

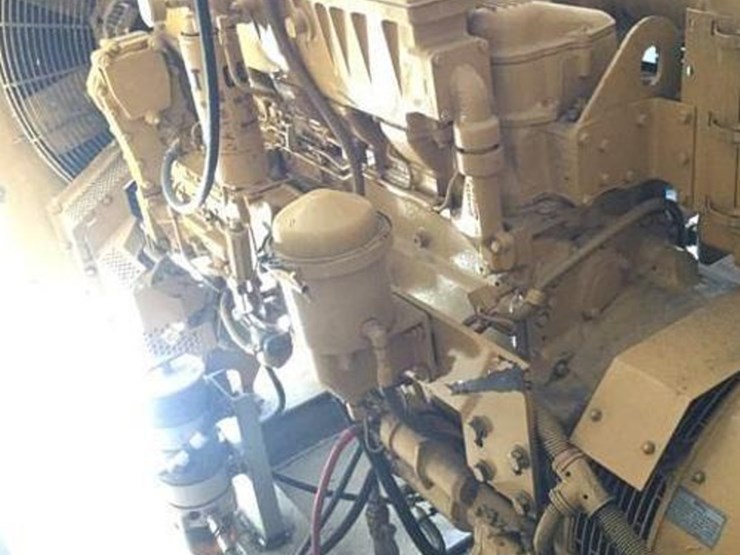

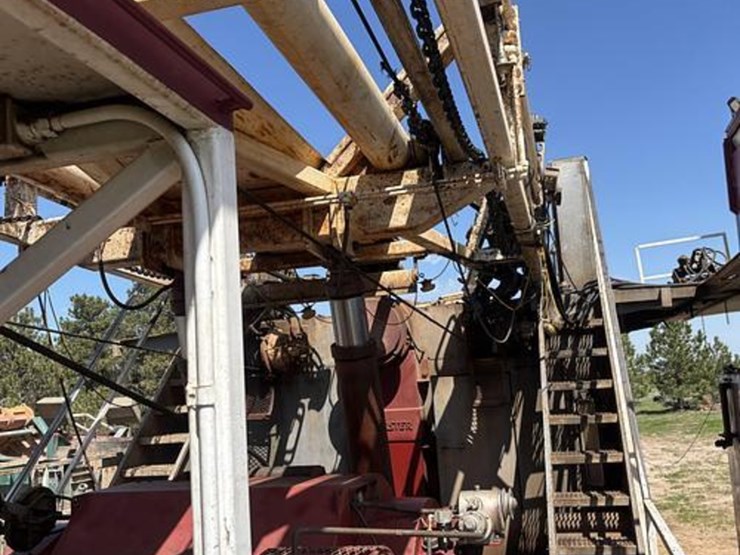

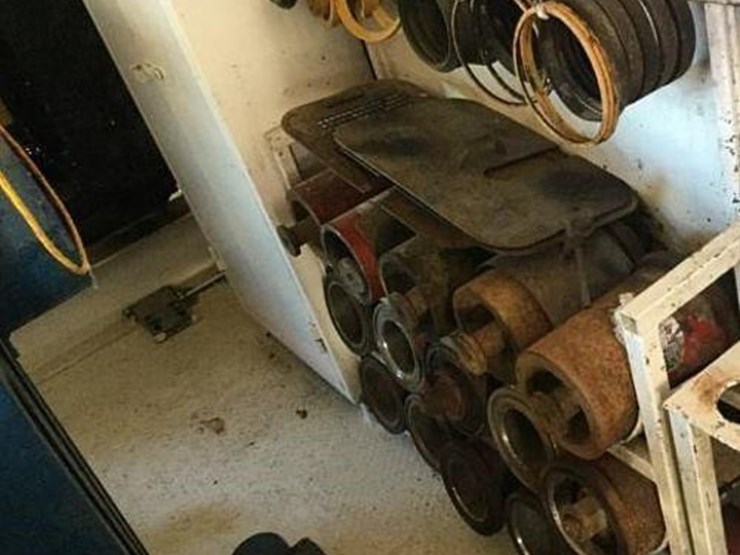

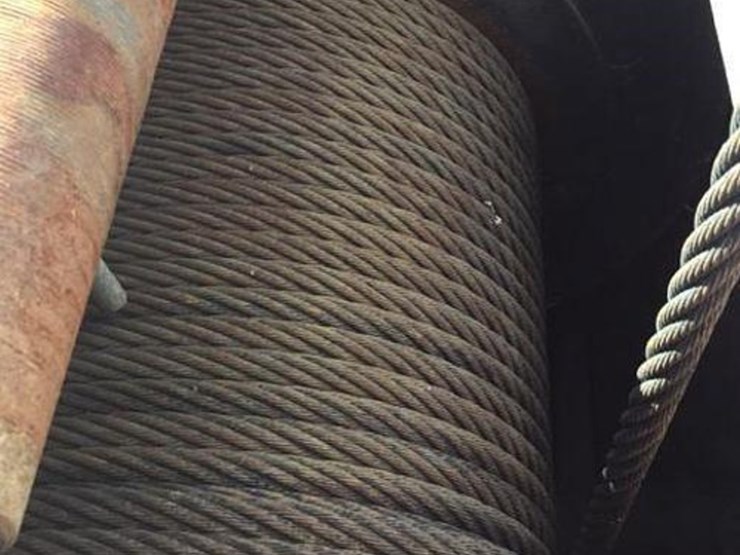

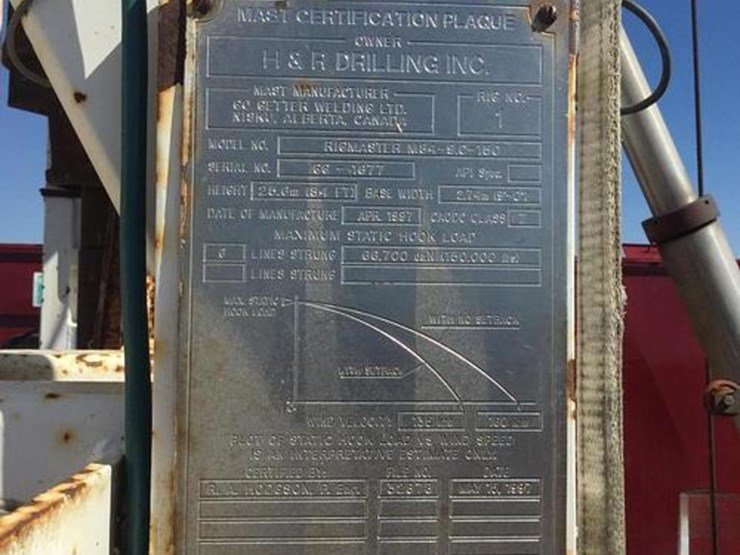

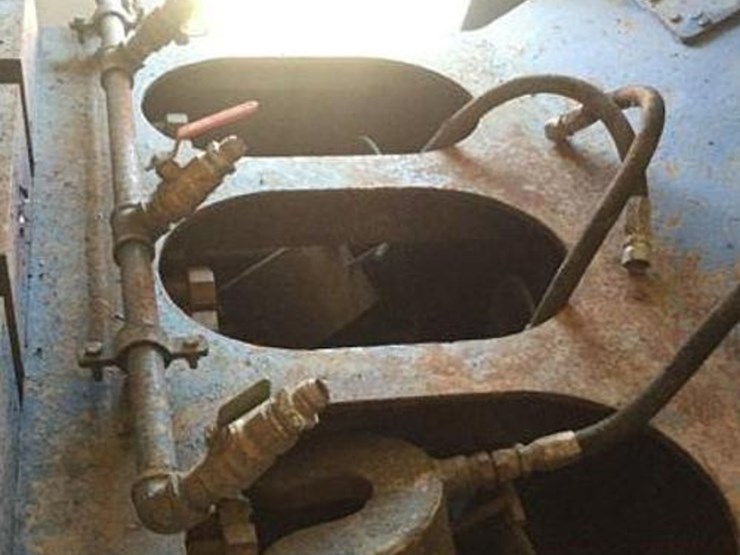

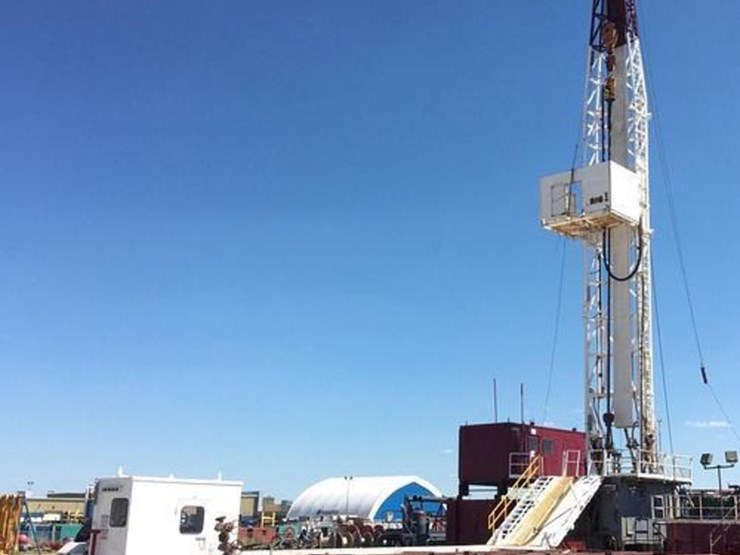

DRAWWORKS: Make: Rigmaster P-300, Drive: Cat 3406 B, Rating kw (hp): Cat 3406 B, Hoisting Capacity daN (lbs): 66,700 (149,900) Auxiliary Brake: WCB 124 Eaton MAST: Make: Rigmaster Stiff Single, Height m (ft): 25.6 (84), Static Hook load daN (lbs): 66,700 (149,900), Number of Lines: 6, Drilling Line mm (inches): 25.4 (1) SUBSTRUCTURE: Make: Go Getter Trailer Mounted, Max Setback Load daN (lbs): 53,400 (120,000)Max Rotary Load daN (lbs): 53,400 (120,000), KB-Ground m (ft):  3.7 (12), BOP Clearance m (ft):  3.19 (10.5) HOISTING & ROTATING EQUIPMENT: Rotary Table Size mm (inches): 457 (18), Block Hook Capacity Ton (daN): 100 (66,700) MUD PUMP 1: Manufacturer & Model: Gardner Denver PZ-8 (800), Drive & Rating kW (hp): Cat 3408E, 560 (800), Liners mm (inches): 127 (5) to 152 (6) Circulating Pressure kPa (psi): 21,000 (3,000) MUD SYSTEM: Number of Tanks: 1, Total Volume m3 (bbl): 5 compartments - 52 (436),Shale Shaker(s): 1 x Derrick Flo-Line Cleaner Pill Tank m3 (bbl): 2.5 (21), Trip Tank m3 (bbl): 2.0 (17) Agitators: 3 Brook Hansen 7.5hp Accumulator:  Electronic Control System, 5 Station Capacity L (gallons): 400 (105.7) ADDITIONAL EQUIPMENT: Fuel Storage L (gallons):  18,000 (4,755) Water Storage L (gallons): 60,000 (15,850) Instrumentation:  Pason Electronic Drilling Recorder, Hydraulic Catwalk: Range 3 Skate Catwalk, Drill Pipe Spinner:  Spinmaster, Kelly Spinner: Foster TP77, Cold Start & Rating kW (hp):  1 x Cat, 320 (429) bill of sale only Item Location - City: Spearfish Item Location - State: South Dakota Stock Number: 2507037

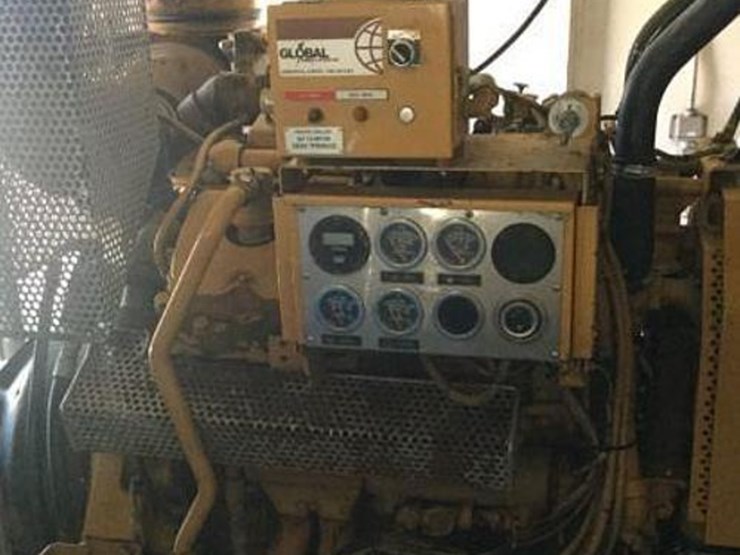

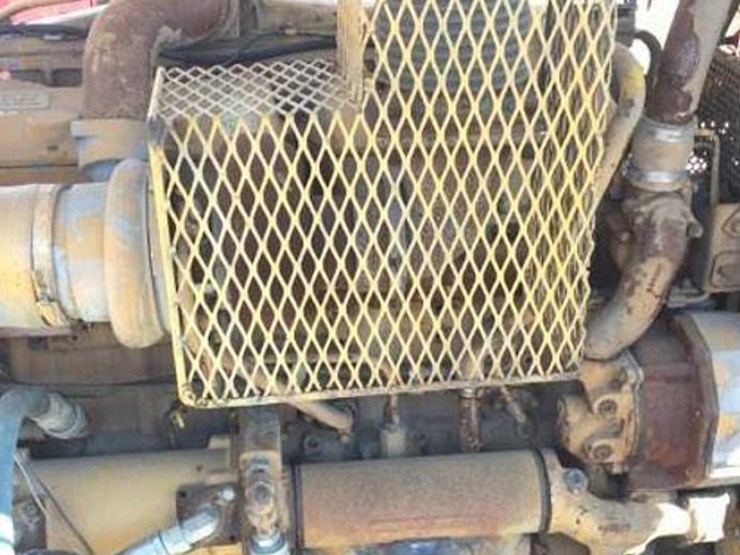

CATERPILLAR 3406

Lot #259

Item #

95797936

Make

CATERPILLAR

Model

3406

Compartments

5

Blade

S

Drum Setup

Single

Thumb

Hydraulic

Number of Rear Axles

Single

Transmission Manufacturer

Eaton
